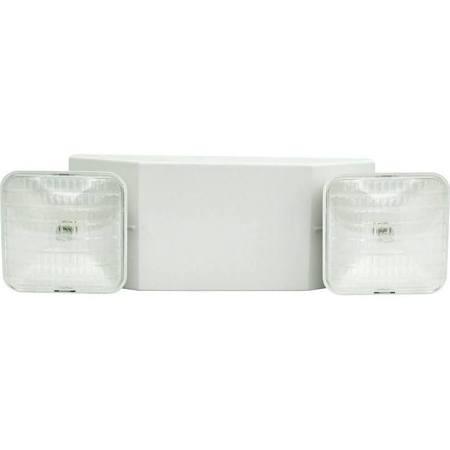

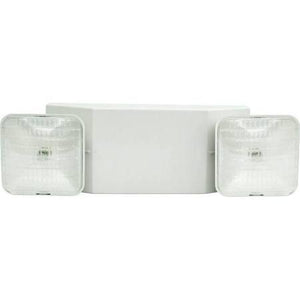

MODEL: 20760
- Completely self-contained
- Fully automatic operation
- Compact, low-profile design in neutral finish
- Universal mounting plate with "EZ" Quick Connect for rapid, labor-saving installation
- Push-to-test switch
- Environmentally-coated, solid state charger
- Automatic, low-voltage disconnect (LVD)
- Universal transformer for 120 or 277 VAC
- Listed for damp location
- Injection-molded, V-O flame retardant, high-impact thermoplastic housing
- Charger rate/power on LED indicator light
- Operating temperature range of 20°C to 50°C
- Two 5.4W 6 volt lamps provide illumination
- 20765 can run 11W of remote heads
- UL 924 Listed
- Follows NFPA 101, NEC, and OSHA standards
- 20760 and 20762 are CUL listed
SPEC SHEET
