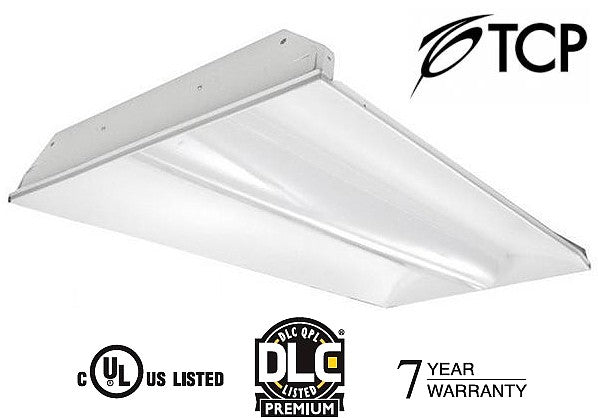

TCP 2X4 3 Selectable Wattage Center Basket Volumetric Troffer 5000k or 4100k TRV4UZD3850K TRV4UZD3841K DLC PREM 7YR WARRANTY 29 38 46 WATT
TCP 2X4 3 Selectable Wattage Center Basket Volumetric Troffer 5000k or 4100k TRV4UZD3850K TRV4UZD3841K DLC PREM 7YR WARRANTY 29 38 46 WATT
TCP 2X4 3 Selectable Wattage Center Basket Volumetric Troffer 5000k or 4100k TRV4UZD3850K TRV4UZD3841K DLC PREM 7YR WARRANTY 29 38 46 WATT
TCP 2X4 3 Selectable Wattage Center Basket Volumetric Troffer 5000k or 4100k TRV4UZD3850K TRV4UZD3841K DLC PREM 7YR WARRANTY 29 38 46 WATT
TCP 2X4 3 Selectable Wattage Center Basket Volumetric Troffer 5000k or 4100k TRV4UZD3850K TRV4UZD3841K DLC PREM 7YR WARRANTY 29 38 46 WATT
TCP 2X4 3 Selectable Wattage Center Basket Volumetric Troffer 5000k or 4100k TRV4UZD3850K TRV4UZD3841K DLC PREM 7YR WARRANTY 29 38 46 WATT

TCP 2X4 3 Selectable Wattage Center Basket Volumetric Troffer 5000k or 4100k TRV4UZD3850K TRV4UZD3841K DLC PREM 7YR WARRANTY 29 38 46 WATT

Regular Price
$89.00
Our Price
$89.00
Shipping calculated at checkout.
Hey, Quantity must be 1 or more :)

Adjust your lighting and energy preference with the TCP Brand switchable wattage output of this 3-in-1 LED center basket troffer. Premium DLC Certified.










 SPEC SHEET

  • Wattage Options - 29, 38, or 46
  • Lumens 4000, 5200, or 6000
  • Up to 138 Lumens per watt
  • Rated for insulated ceilings
  • Low glare acrylic diffuser
  • 5000K Stark White or 4100K Daylight

MODELS:

TRV4UZD3850K (5000k)

TRV4UZD3841K (4100k)

  • DLC SEARCH: P40Z6V04 (5000k)
  • DLC SEARCH: PLKRQ9U0 (4100k)
  • Light Output: 4000, 5200 and up to 6000 Iumens

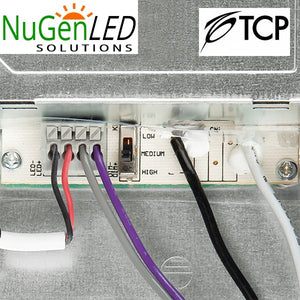

  • Selectable Wattage- 29, 38, or 46 Watts Max
  • Voltage Range: 120 - 277 V
  • CCT: 5000 K
  • CRI: 80
  • 7 Year Warranty



Applications

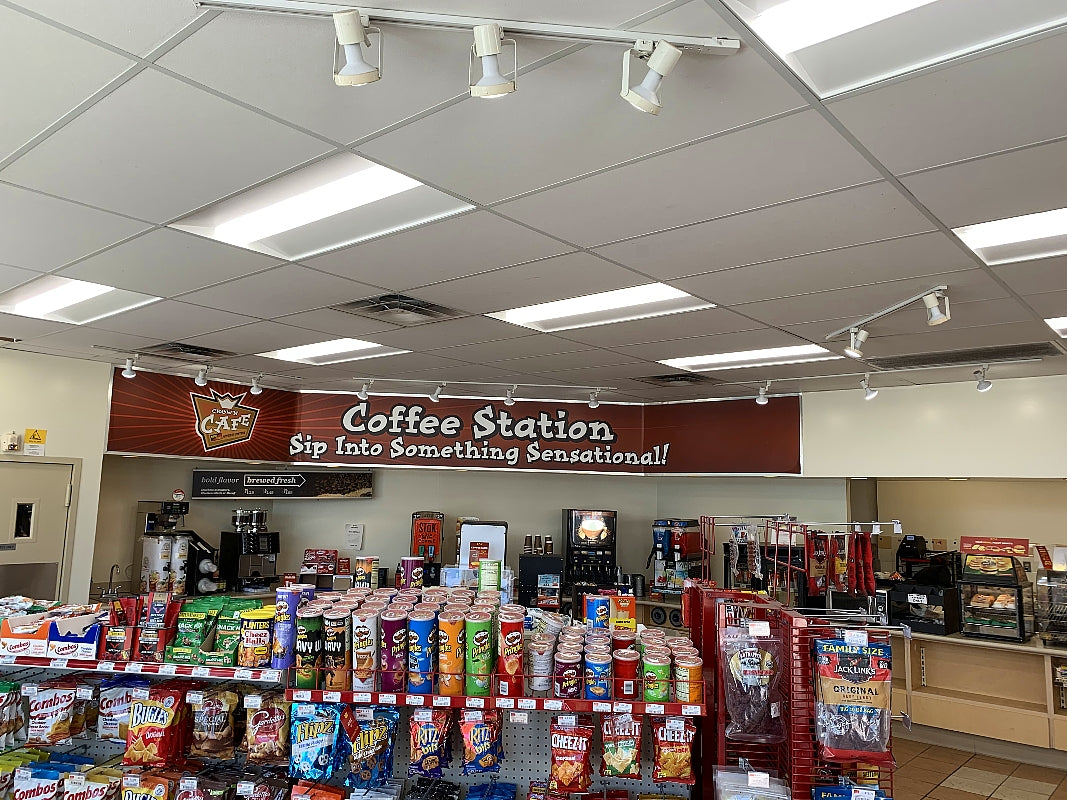

The TCP LED Volumetric Luminaires are high efficiency alternatives to T5, T8 and T12 linear fluorescent troffers. Our intelligent high performance LED light engines and drivers deliver long life, consistent color, and superior lumen maintenance. Applications include offices, schools, retail locations, hospitals, and other grid ceilings.

Construction

The TCP LED volumetric luminaire is constructed of rugged cold-rolled steel, post painted with a highly diffuse white finish, and an impact resistant acrylic diffuser. The housing is designed to mount in a variety of grid ceiling types.

Electrical

All electrical components are cULus listed. TCP high efficiency drivers provide consistent power to ensure even lighting from the long life LEDs. Each driver is matched to a light engine to deliver 50,000 hours life. Full range dimming is optional.

Optics

The impact resistant acrylic diffuser conceals the LEDs while providing even light distribution across the luminaire. The smooth white reflector curves into the diffuser, creating volumetric illumination by softening and distributing the light evenly in a wide pattern. The curved design also softens the contrast between the luminaire and ceiling.
