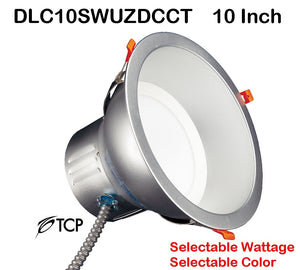

DLC10SWUZDCCT - SPEC SHEET
3 SELECTABLE COLOR TEMPERATURES ~ 3000K, 3500K, 4100K
3 SELECTABLE WATTAGE OPTIONS ~ (18/23/30W)
Input Line Voltage ~ 120-277V
Input Line Frequency ~ 50/60HZ
Dimmable ~ 0-10V
Lamp Life (rated) ~ 50,000 hours (5 YR WARRANTY)
Minimum Starting Temp ~ -22F/-30C
Maximum Operating Temp ~ 104ºF/40ºC
CRI ~ 80
IC-rated for direct contact with insulation
UL approved for damp locations
TCP’s Selectable Commercial Recessed Downlights offer choices for color temperatures and
wattages, making these adaptable for many situations.
Reasons to choose LED Commercial Recessed Downlights from TCP
• 3 Selectable Wattages 18w, 23w or 30w
• 3 Selectable Colors (30K/35K/41K)
• 50,000 hours life minimizes replacement and maintenance costs
• Flicker Free Design for consistent lighting
• Mounts directly to ceiling: 4, 6, 8, 10 or 12 inch
• Shatter resistant
• Matte Silver Finish & Frosted Diffuser
• Easy installation and integrated trim
• Snap clips allow for installation without a recessed can
• 85° beam angle (4”/6”/8’’/10’’)
• 70° beam angle (12’’)
• Smooth, uniform dimming from 100 - 5%
Ideal Applications
• Commercial
• Retail
• Industrial
• Healthcare
